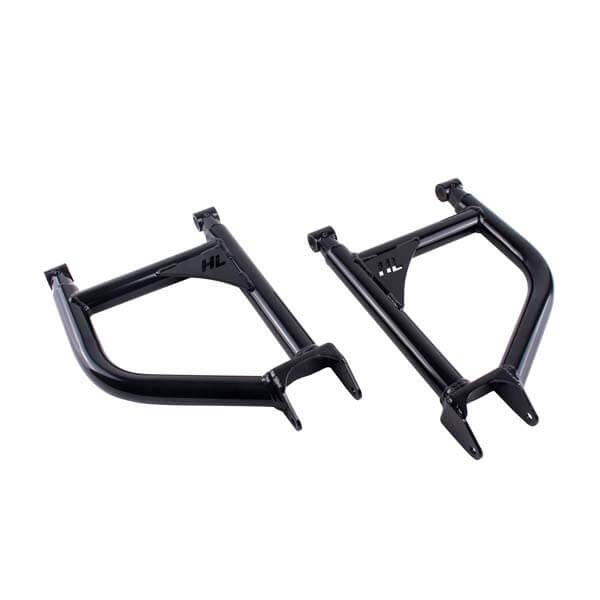

Can Am Defender 1000 XMR APEXX Upper and Lower Rear Raked Control Arms

Our arms maximize ground clearance by strategically arching the lower control arms while following the angle of the axle for maximum clearance, axle protection, and visual appeal. Dont be fooled with too much arch that puts your axles into greater risk of damage. Our precision manufacturing process ensures each control arm installs exactly like the factory arm. Depending on the model, most kits will have the High Lifter logo precision cut into the bracing.

Installation is made easy with our step-by-step and multi-image instructions. During installation, you can reuse stock bushings for easy installation.

Always check for bearing, bushing, and brake wear before installation and replace if needed. We always recommend checking these parts before you start your installation to save time and get back on the trail sooner. See the Replacement Parts Tab to purchase replacement parts as needed.

Built in Adjustability

These lower arms feature an adjustability component in the bushing collars to eliminate premature wearing that can come from the addition of lift kits, portals, or large tires. When the kit is set to the factory position, you will have 3/8 inch of adjustability camber in and out. The heat treated and plated adjustable bushing collars allow you to be confident in the strength youre adding to your ride. The collars come preadjusted to the factory position, and factory bushings and caps should be used for installation.

Features:

• 50% larger than average stock arms - Crafted from 1 1/2 inch x .120 inch wall thickness DOM steel
• Up to 2.5x the wall thickness of an average stock arms
• Grease fittings included for most models
• Added ground clearance featuring bends that maximize clearance and axle protection
• Most stock powder coat colors available in stock
• Easy to install and maintain
• Limited Lifetime Warranty
• Adjustable heat-treated collars for camber adjustability with a 1 inch thread

NOTE: MAY REQUIRE 1" WHEEL SPACERS IF RUNNING FACTORY WHEELS WITH WIDE TIRES. DUE TO THE POSITIVE OFFSET OF FACTORY WHEELS, LARGER LUGS ON MORE AGGRESIVE TIRES MAY RUB AGAINST THE UPPER ARM OR SWAY BAR LINK.
