Can Am Maverick X3 72 Inch APEXX Upper Radius Bar

High Lifter improved the radius bar design even further with our APEXX Suspension Line. In addition to durable, adjustable heim joints, these radius bars are made with thicker material than stock. Weve increased wall thickness by over 70% on the upper radius bar.

High Lifter Radius Bars can be differentiated from other aftermarket radius bars by the polyurethane bushings we use. They are firmer than rubber and should last the life of the vehicle. The enhanced performance helps keep the radius bar stable and aims to eliminate excess movement. By greatly reducing movement, the suspension is more efficient and responsive to the driver.

Installation and maintenance are made easy with adjustable length and can be serviced with readily available parts. The simple bolt-on kit features heim joints for easy camber adjustment. High Lifters Radius Bars will give you the strength and clearance needed for peace of mind when riding.

Upper Radius Bar Features:

• Crafted from extreme duty 1.5 inch x .188 inch DOM steel construction up to 70% larger than many stock radius bars
• Massive replaceable 7/8 inch heim and 5/8 inch heim joints for camber adjustability without sacrificing strength
• Easy adjustability with straight bar design
• Polyurethane bushings to eliminate excess movement
• Simple bolt-on kit
• UV-resistant Powder Coating
• Step by step instructions complete with multi-images for a quick install
• Limited Lifetime Warranty (Excludes wearable items like bearings, cones, and heim joints)

Upper Radius Bars have inchon the fly inch adjustability! The straight bar design with massive 7/8 inch and 5/8 inch heim joints on either end allows for easy adjustability.

Middle and Lower Radius Bar Features:

• Kit includes both middle and lower radius bars
• Bars are arched that allows for 1.75 inch of additional ground clearance
• Crafted from extreme duty 1.5 inch x .188 inch DOM steel construction up to 70% larger than many stock radius bars
• Larger extreme duty spherical bearings
• Massive replaceable 5/8 inch heim joints for camber and toe adjustability without sacrificing strength in both middle and lower radius bars
• Massive replaceable ¾ inch Teflon lined spherical bearings
• Added ground clearance over stock lower radius bar
• Polyurethane bushings to eliminate excess movement
• Simple bolt-on kit
• UV-resistant Powder Coating
• Step by step instructions complete with multi-images for a quick install
• Limited Lifetime Warranty (Excludes wearable items like bearings, cones, and heim joints)

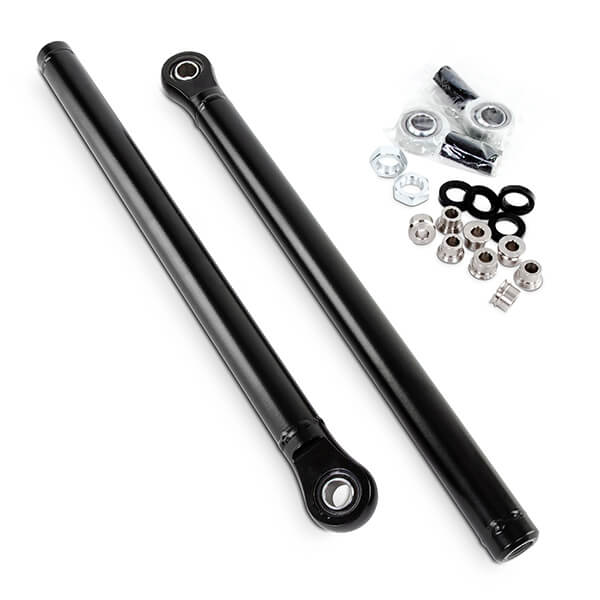

Note:The photos of the arched radius bars are the lower and middle and the straight bars pictured are the upper radius bars.
